Pultrusion machines, sized from your profile drawing.
A pultrusion machine pulls resin-impregnated fiber through a heated steel die and cuts the cured profile to length. Henan Zhongsheng builds hydraulic reciprocating machines, caterpillar machines and multi-line GFRP rebar lines, and runs the same designs in its own profile production.
ZSLY10 · ZSY20 · ZSY30 · ZSY50

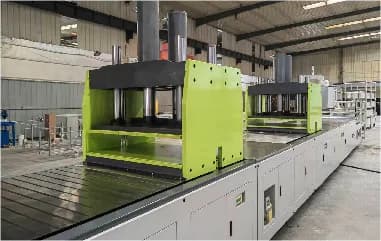

Hydraulic pultrusion machine
Single-station hydraulic reciprocating pultrusion machines from 100 kN to 500 kN pull force for solid and hollow FRP profiles, tubes, beams, sheet pile and grating bars.
Specs and scope
ZS-L5A · ZS-L10A

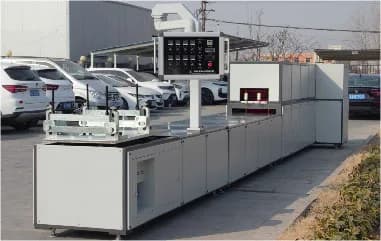

Caterpillar pultrusion machine
Continuous track pullers for thin-walled hollow profiles, radome tubes and small multi-cavity sections where reciprocating clamps would mark or crush the part.
Specs and scope
ZSXWJ2 · ZSXWJ5

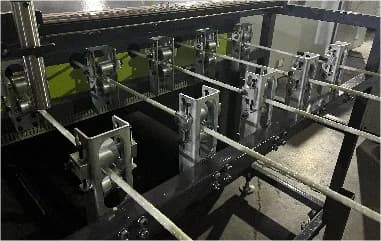

GFRP rebar production line
Multi-line lines for helically wound, sand-coated or plain GFRP rebar and anchor bolts, from creel to cut-off, with caterpillar haul-off for continuous pull.
Specs and scope
Compare
Hydraulic, caterpillar or rebar line?
| Hydraulic | Caterpillar | GFRP rebar line | |
|---|---|---|---|
| Drive | Two reciprocating clamping gantries | Continuous polyurethane tracks | Caterpillar haul-off, multi-line |
| Pull force | 100–500 kN | 50–100 kN | Per bar count |
| Suited to | Thick, heavy and wide profiles | Thin-walled hollow profiles, cosmetic surfaces | GFRP rebar, anchor bolts |
| Surface | Clamp contact areas | No clamp marks | Helical rib or sand coat |
| Models | ZSLY10, ZSY20, ZSY30, ZSY50 | ZS-L5A, ZS-L10A | ZSXWJ2, ZSXWJ5 |
Also built to order
Other configurations
These are quoted on request with the same scope list, FAT and contract terms. Ask for them on the RFQ form.
Double-station hydraulic pultrusion machine (10 t)
Two independent lines on one chassis; 0.1–1.5 m/min; profiles up to 200 × 100 mm per station.
Curved profile pultrusion machine
Continuous curved profiles for greenhouse and tunnel frames; curvature set by the die.
Dual-line FRP rock bolt line
Threaded anchor bolts with crawler haul-off.
GFRP rebar mesh line
Automated mesh grids for pavement and bridge decks.
Two-component resin injection machine
Gear-pump metering for epoxy, PU and phenolic injection boxes; 2 × 60 L tanks.
Roving creel (5-layer)
195–210 packages of φ300 mm direct roving per rack.
FRP rebar coiler
Coils small-diameter bars at the end of the line.
FAQ
Pultrusion machine basics
- What is a pultrusion machine?
- A pultrusion machine continuously pulls resin-impregnated fiber through a heated steel die, where the resin cures into a constant cross-section profile. It consists of a mold table with die heating, a puller (hydraulic reciprocating clamps or caterpillar tracks), a control system and a cut-off saw. Creels and a resin bath or injection box sit upstream.
- How much pull force do I need?
- Pull force depends on the die length, cross-section perimeter, fiber content, filler and line speed. Small rods and tubes run on 50–100 kN machines; structural beams and sheet pile need 300–500 kN. The factory sizes the machine from your drawing.
- Is the machine supplied with a die?
- No. Dies are profile-specific and quoted separately, usually together with the machine. See the pultrusion dies section.
- Who is the manufacturer and who do I contract with?
- Henan Zhongsheng Composite Material Co., Ltd. builds the machine and is the warranty party. The Shanghai export company is the contracting party and exporter of record. Both are named on every quotation.
Next step
Send a cross-section drawing. Get a DFM review and a scoped quotation.
Quotations state the manufacturer, the exporter of record, the warranty party, FAT scope and payment milestones. No figure is quoted without a drawing.
