Pultrusion machine · ZSXWJ2 · ZSXWJ5
GFRP rebar production line
A GFRP rebar production line impregnates glass roving with resin, forms it into round bars, applies a helical rib by winding, cures the bars in heated ovens and pulls them continuously with a caterpillar haul-off before cutting or coiling. The factory builds 2-line and 5-line configurations for bar diameters from φ4 to φ32 mm.
Specification
Configuration table
Every cell is either a figure supplied by the factory or TBD · ask factory. No typical values. Source: frpzs.com GFRP rebar machine page, fetched 2026-10-19.
| Parameter | ZSXWJ2 | ZSXWJ5 |
|---|---|---|
| Bars pulled simultaneously | 2 | 5 |
| Bar diameter rangeOne page's text says φ35 mm; table value shown | φ4–φ32 mm | φ4–φ32 mm |
| Creel | 2 racks, 300 packages | 2 racks, 300 packages |
| Resin bath | 30 L, 1.5 kW preheat | 40 L |
| Helical winding unit | 0–500 rpm, 3 kW VFD | 0–400 rpm, 1.1 kW × 5 |
| Curing ovens | 4 boxes, 24 kW total, 0–250 °C | 5 boxes, 9 kW each, 5 zones |
| Cooling | Water, 200 W | Water, 200 W |
| Caterpillar haul-off speed | 0–5,000 mm/min | 0–4,000 mm/min |
| Haul-off motors | 1.5 kW × 2 | 1.5 kW × 2 |
| Cut-off saw | 2.2 kW | 3 kW |
| Coiler / sand coating | Optional | Retrofit option |
| Line output (m/h per bar size) | TBD · ask factory | TBD · ask factory |
| Lead time (working days) | TBD · ask factory | TBD · ask factory |
Scope of supply
What is included, what is quoted separately
The single most requested clarification from buyers. Both lists appear on the quotation.
Included in the base quotation
- Roving creels and yarn guides
- Resin impregnation bath
- Helical winding unit with variable-frequency drive
- Electric curing ovens with zone control
- Water cooling section
- Caterpillar haul-off
- Cut-off saw and PLC control
- Pre-shipment FAT with a trial run of one bar size
Quoted separately on request
- Sand-coating unit
- Coiler for small diameters
- Bending station for stirrups
- Additional forming dies for other diameters
- Destination-standard electrical panel
- Test support for ASTM D7957 / CSA S807 qualification (performed by an accredited lab)
- Installation and training on site
Applications
Profiles this configuration is pulling today
- Helically wound GFRP rebar
- Sand-coated rebar
- Threaded FRP rock and soil anchor bolts
- Rebar mesh feedstock
- Smooth GFRP dowels and rods

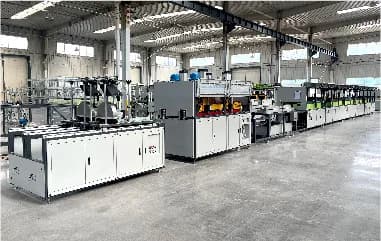

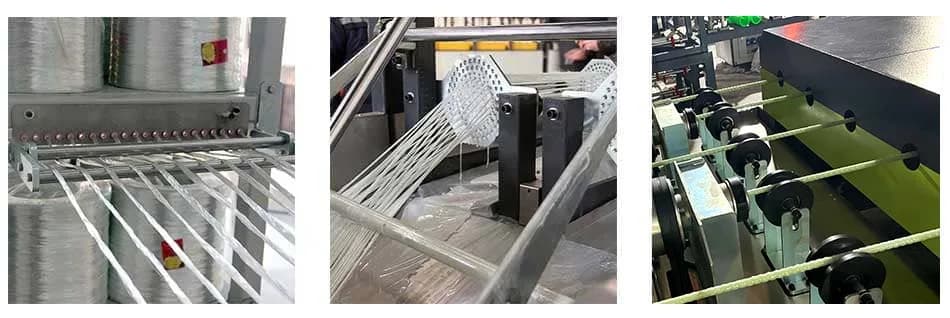

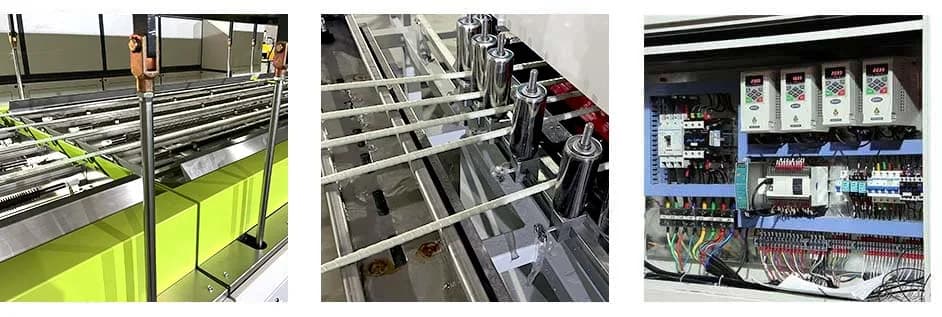

From the workshop
Photographs
Commercial terms
Who you contract with
- Manufacturer and warranty party
- Henan Zhongsheng Composite Material Co., Ltd.
- Contracting party and exporter of record
- Pultruded Export, Shanghai, China
- Incoterms
- FOB Chinese port by default; CIF/DAP on request
- Payment
- Milestones tied to drawing approval, FAT acceptance and shipment. Exact split on the quotation.
- Third-party inspection
- SGS, BV or TÜV pre-shipment inspection accepted, cost borne by the buyer
- Electrical
- 380 V 50 Hz standard; 480 V 60 Hz and other supplies on request. CE-oriented panel standard; UL 508A option quoted separately.
FAQ
Questions buyers ask
- Will bars from this line meet ASTM D7957 or CSA S807?
- Compliance belongs to the bar, not the machine. It depends on your resin, roving, process control and an accredited lab's test results. The line can produce bars to those specifications; qualification testing is your responsibility and is quoted as support only.
- 2-line or 5-line?
- A 5-line machine multiplies output for the same operator count but needs more creel space and roving inventory. For a new plant testing the market, a 2-line machine lowers the starting investment.
- Can the line make rock bolts?
- Yes. The factory also builds a dual-line threaded rock bolt configuration. Ask for it on the RFQ.
- What output per hour should I plan for?
- Output depends on bar diameter, rib geometry and resin cure. The factory has not published a figure per diameter; it is stated in the quotation for your bar schedule.
Next step
Send a cross-section drawing. Get a DFM review and a scoped quotation.
Quotations state the manufacturer, the exporter of record, the warranty party, FAT scope and payment milestones. No figure is quoted without a drawing.
